Wire & Metal Sheet & Enameled Wire Spot Welding Machine

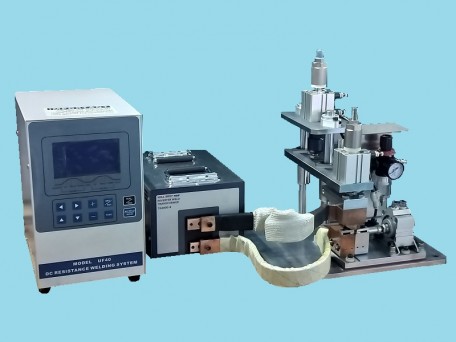

UF40C Wire Welding & Compacting Solution
1. One set UF40C welding power source supply
2. One set TR4000B inverter welding transformer
3. One set SW50Q pneumatic compacting welding head
4. Two PCS power cables
5. One pcs foot pedal
2. One set TR4000B inverter welding transformer
3. One set SW50Q pneumatic compacting welding head
4. Two PCS power cables
5. One pcs foot pedal
Product Details
CE Certification
UF40C Features:
1. Up to 4KHz inverter frequency and precise feedback control make welding energy control more precise and rapid.2. Dual pulse welding and each pulse can adjust the time, energy and energy control method.
3. Multiple welding energy control methods: constant current/constant voltage/constant power.
4. Full parameter monitoring of the welding process, with welding result data displayed in text and graphics.
5. Automatic evaluation of welding quality and signal output for easy backend processing in production
6. Multiple welding modes, such as universal welding, seam welding, remote control welding, etc
7. The serial communication function can transmit the result datas of each time to the computer
8. Multiple automated handshake signals for easy integration into automatic welding systems
9. The welding counter can accumulate all solder joints or only accumulate qualified solder joints
10. Can be matched with various welding heads and welding triggering methods
UF40C Welding Power Supply:
1. Net weight: 9KG2. Dimension(mm): 195(W) * 318(H) * 320(D)
3. Cooling method: air cooling
4. Inverter frequency: 4Khz
5. Maximum welding current: 4500A
6. Power Supply: 3-phase,360VAC~410VAC/35A
7. Standby power consumption: 30W
TR4000B Welding Transformer:
1. Net weight: 14.5KG
2. Dimension(mm): 194(W) * 160.5(H) * 288.5(D)
3. Cooling method: Water cooling
4. Maximum frequency: 10Khz
5. Maximum output current: 5KA
6. Duty cycle: 36%
Welding Samples:
