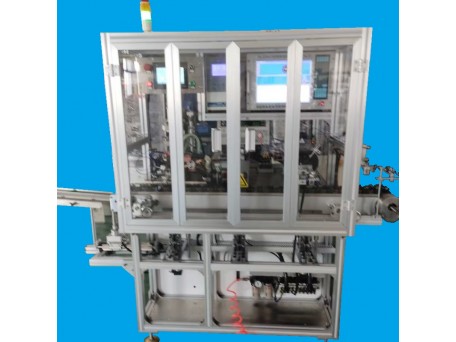

WHC65 motor commutator welding and testing machine
The WHC53 and WHC65 micro motor rotor welding and testing integrated machine is designed for high-speed automation production of micro motor rotors, with a production capacity of 600 3 series and 5 series rotors per hour.
during production, without the need for manual intervention throughout the entire process.
Product Details
Features:
1. When equipped with UF40 inverter welding power supply, it can weld diameter 0.8mm enameled wire2. When configuring the UF81 inverter welding power supply, it can weld 2.2mm enameled wire
3. Use dual servo weld heads
4. Use servo test head
5. Various armature testers and high-voltage testers can be configured
6. Automatic defect sorting device
7. There are front and rear loading and unloading robotic arms and rich handshake signals, which can be easily embedded into the automatic line
8. Can weld copper-clad wire and copper-clad aluminum enameled wire
Specifications:
1. Production of small DC motors using a dynamic self spot welding/testing integrated machine, efficiency: (depending on the number of rotor hooks and wire diameter).The workshop covers an area of 3.0 meters by 2.0 meters, with good lighting and ventilation.
3. View of the fully automatic spot welding testing machine: see the left figure.
4. Number of operators for a single cable: 1 person (for loading and unloading)
5. Dynamic self spot welding/testing external dimensions: L * W * H=3200 * 1200 * 1800mm
6. Power supply: 3-phase, 380VAC/60A
