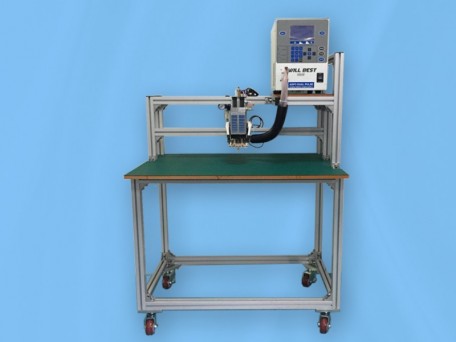

18650/26650/21700 Battery Pack Spot Welding Equipment
WBT-8000A
The WBT-8000A includes:
1. ADP3 dual pulse energy storage welding power supply
2. WBT-Q03 Pneumatic Double Point Welding Head
3. A Pair Welding cables
4. Equipped with 1 pair of 3mm or 6mm diameter reinforced aluminum copper electrode
5. Equipped with one foot switch
6. Equipped 1 set of machine table
Specifications:
1. Net weight: 76KG
2. LCD display
3. Welding power supply: ADP3 dual pulse precision energy storage welding power supply
4. Welding head: WBT-Q03 pneumatic dual point precision welding head
5. Power supply: 208VAC~235VAC, 50/50Hz
6. Throat depth (mm): 420
ADP3 Dual Pulse Energy Storage Welding Power Supply
Specifications:
1. Net weight: 37.5KG
2. Size (mm): 500 * 250 * 346
3. LCD display screen
4. Dual pulse output
5. Maximum output energy of 300 joules
6. Power supply: 208VAC-230VAC, 50/60Hz
Features:
1. High precision control of welding energy to improve welding consistency
2. Can store 10 sets of welding programs
3. Three level welding current waveform settings
4. Welding current polarity switching
5. Welding current monitoring and waveform display function
6. Multiple welding work modes
7. Serial communication can transmit each welding parameter to the computer
WBT-Q03 Pneumatic Double Point Precision Welding Head:
Specifications:
1. Net weight: 11KG
2. Size (mm): 340 * 200 * 475
3. Welding force range: 0~4(kgf)/0~8(kgf)
4. Parallel electrode structure, adjustable electrode stroke
5. Electrodes diameter: 3mm or 6mm
6. Drive mode: Pneumatic
