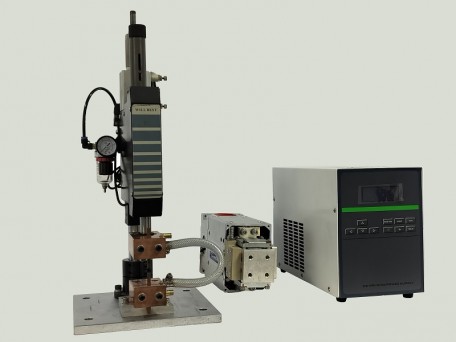

UF81 Welding Power Supply:

  1. Dimension(mm): 185(W) * 270(H) * 440(L)

  2. Net weight: 10.2KG

  3. Power supply: 3-phase, 350VAC ~ 410VAC/60A

  4. Cooling method: Air cooling

  5. Duty cycle: 20%

  6. Maximum Wedling Current: 8KA

  7. Inverter Frequency: 1Khz

  8. Standby power consumption: 30W

TR10KA Welding Transformer:

 1. Dimension(mm): 150(W) * 125(H) * 278(D)

 2. Net weight: 13.8KG

 3. Maximum short-circiut current(10 milliseconds): 28KA

 4. Rated working current(40% Duty cycle): 10KA

 5. No load voltage: 9.1V

 6. Primary working voltage(maximum): 600V

 7. Insulation level: F

 8. Cooling water flow rate: 8L/min

 9. Maximum frequency: 2Khz

WBT-Q180 Pneumatic Welding Head:

 1. Net weight: 14KG

 2. Dimension(WxHxD): 250mm x 600mm x 250mm
 3. Welding force: 3kgf - 45kgf
 4. Throat depth: 180mm
 5. Available electrode diameter: 6mm/8mm/12mm
 6. Driving method: Compressed air

 7. Compressed air: 2.5 Bar - 8 Bar

 8. Cylinder stroke: 5mm - 45mm

 9. Water cooled electrode holder

Welding Samples:
