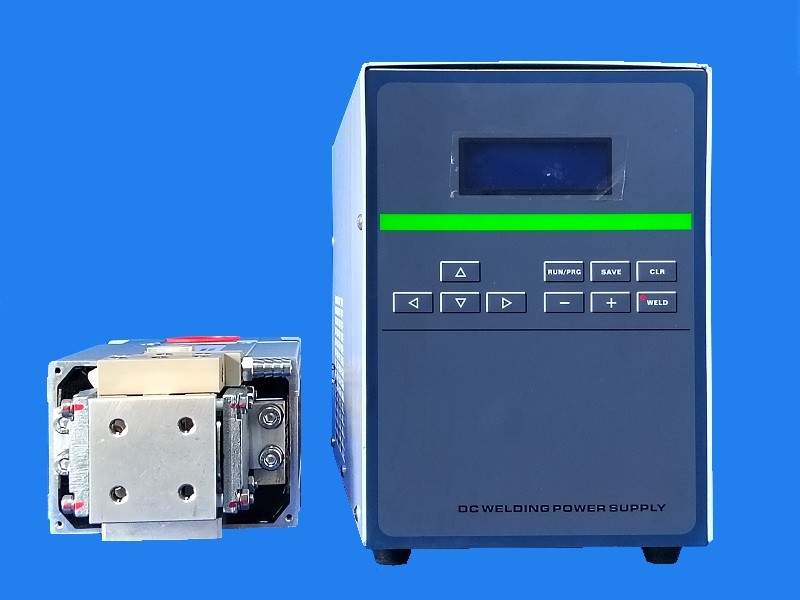

UF81 Medium Frequency DC Inverter Welding Power Supply
Specification:
1. Dimension(mm): 185(W) * 270(H) * 440(L)
2. Net weight: 10.2KG
3. Power supply: 3-phase, 350VAC ~ 410VAC/60A
4. Cooling method: Air cooling
5. Duty cycle: 40%
6. Maximum output current: 150A
7. Standby power consumption: 20W
1. 1kHz inverter frequency, compatible with various intermediate frequency welding transformers
2. Up to 20% load duration
3. Dual pulse welding function, each pulse can be individually set with welding parameters and monitoring parameters
4. Multiple welding energy control methods, constant current/constant voltage/constant power/constant pulse width
5. Two welding modes, ordinary spot welding mode and remote automatic control mode, are easy to embed into automatic welding systems
6. Every time the welding is completed, the welding process data and results are output to the computer in series
7. Display the welding process data and results on the LCD screen every time the welding is completed
Medium frequency welding transformer:
1. Dimension(mm): 150(W) * 125(H) * 278(D)
2. Net weight: 13.8KG
3. Maximum short-circiut current(10 milliseconds): 28KA
4. Rated working current(40% Duty cycle): 10KA
5. No load voltage: 9.1V
6. Primary working voltage(maximum): 600V
7. Insulation level: F
8. Cooling water flow rate: 8L/min
9. Maximum frequency: 2Khz
