Welding Power Supply

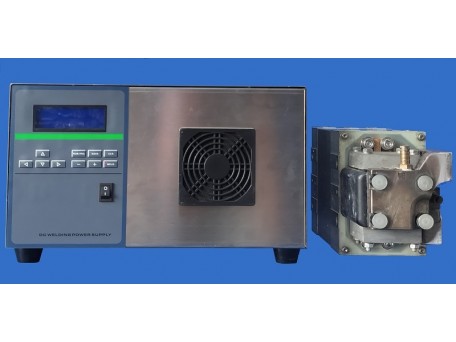

UF400 Medium Frequency DC Inverter Resistance Welding Power Supply
Specification:
1. Dimension(mm):
2. Net weight:
3. Power supply: 3-phase, 350VAC ~ 410VAC/150A
4. Cooling method: Water cooling + Air cooling
5. Maximum duty cycle: 40%
6. Maximum duty cycle: 300A
7. Standby power consumption: 30W
Product Details
Features:
1. 1kHz inverter frequency, compatible with various intermediate frequency welding transformers
2. Up to 40% load duration
3. Dual pulse welding function, each pulse can be individually set with welding parameters and monitoring parameters
4. Multiple welding energy control methods, constant current/constant voltage/constant power/constant pulse width
5. Multiple welding modes, including regular spot welding mode, seam welding mode, and remote control mode
6. Every time the welding is completed, the welding process data and results are output to the computer in series
7. Display the welding process data and results on the LCD screen every time the welding is completed
1. Length * Width * Height (mm):
2. Net weight:
3. Maximum short-circuit current (10 milliseconds): 56KA
4. Rated working current (40% load duration): 20KA
5. No load voltage: 9.1V
6. Primary working voltage (maximum): 600V
7. Insulation level: F
8. Cooling water flow rate: 20L/min
9. Inverter frequency: 2KHz
1. 1kHz inverter frequency, compatible with various intermediate frequency welding transformers
2. Up to 40% load duration
3. Dual pulse welding function, each pulse can be individually set with welding parameters and monitoring parameters
4. Multiple welding energy control methods, constant current/constant voltage/constant power/constant pulse width
5. Multiple welding modes, including regular spot welding mode, seam welding mode, and remote control mode
6. Every time the welding is completed, the welding process data and results are output to the computer in series
7. Display the welding process data and results on the LCD screen every time the welding is completed
8. Multiple automatic control handshake signals facilitate embedding in automatic welding equipment
1. Length * Width * Height (mm):
2. Net weight:
3. Maximum short-circuit current (10 milliseconds): 56KA
4. Rated working current (40% load duration): 20KA
5. No load voltage: 9.1V
6. Primary working voltage (maximum): 600V
7. Insulation level: F
8. Cooling water flow rate: 20L/min
9. Inverter frequency: 2KHz
