18650/26650/21700 Battery Pack Spot Welding Equipment

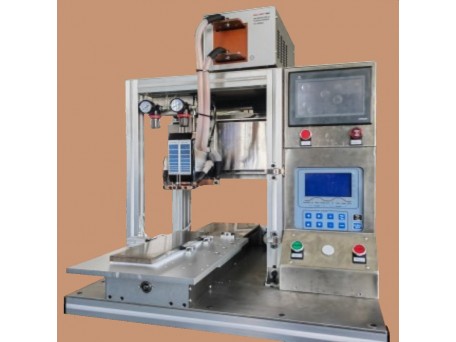

SHBA-42A Automatic18650/26650/21700 Battery Packs Welding Equipment
Features:
1. Suitable for 18650/26650/21700 batteries
2. 2 All axes are driven by servo motors
3. 1 sets of WBT-Q03Q dual point pneumatic high-speed precision welding heads
4. Outstand electrode follow-up properties
5. Equipped with ADP3 energy storage welding power supply or UF40 high-frequency DC inverter power supply
6. Customizable according to the product
1. Suitable for 18650/26650/21700 batteries
2. 2 All axes are driven by servo motors
3. 1 sets of WBT-Q03Q dual point pneumatic high-speed precision welding heads
4. Outstand electrode follow-up properties
5. Equipped with ADP3 energy storage welding power supply or UF40 high-frequency DC inverter power supply
6. Customizable according to the product
Product Details
Specifications:
1.Net Weight:89KG?No include the welding power machine?
2.Dimension(mm): 820(W) x 730(H) x 1230(D)
3.Maximum X-axis stroke: 220mm
4.Maximum Y-axis stroke: 420mm
5.Power supply(with ADP3): 1 PHASE,220VAC,5A,50Hz/60Hz
6.Power supply(with UF40): 3 PHASE,380VAC,20A,50Hz/60Hz
7.Welding head: WBT-Q03Q
8.Standby power consumption: 45W
9.Maximum weldable nickel sheet thickness: 0.38mm
1.Net Weight:89KG?No include the welding power machine?
2.Dimension(mm): 820(W) x 730(H) x 1230(D)
3.Maximum X-axis stroke: 220mm
4.Maximum Y-axis stroke: 420mm
5.Power supply(with ADP3): 1 PHASE,220VAC,5A,50Hz/60Hz
6.Power supply(with UF40): 3 PHASE,380VAC,20A,50Hz/60Hz
7.Welding head: WBT-Q03Q
8.Standby power consumption: 45W
9.Maximum weldable nickel sheet thickness: 0.38mm
