Wire & Metal Sheet & Enameled Wire Spot Welding Machine
DC Resistance 8000A Spot Welding
Medium-Frequency DC Inverter Welding Machine

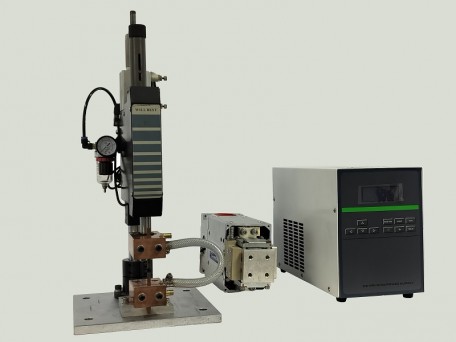

1. One set UF81 welding power source supply
(8KA, dual pulse, inverter DC welding power)
2. One set TR-10KA inverter welding transformer
3. One set WBT-Q180 single welding head
(Air operated,Wedling force 45kgf)
4. Two PCS power cables
UF81 Specifications:
1. Dimension(mm): 185(W) * 270(H) * 440(L)
2. Net weight: 10.2KG
3. Power supply: 3-phase, 350VAC ~ 410VAC/60A
4. Cooling method: Air cooling
5. Duty cycle: 20%
6. Maximum Wedling Current: 8KA
7. Inverter Frequency: 1Khz
8. Standby power consumption: 30W
TR10KA Specifications:
1. Dimension(mm): 150(W) * 125(H) * 278(D)
2. Net weight: 13.8KG
3. Maximum short-circiut current(10 milliseconds): 28KA
4. Rated working current(40% Duty cycle): 10KA
5. No load voltage: 9.1V
6. Primary working voltage(maximum): 600V
7. Insulation level: F
8. Cooling water flow rate: 8L/min
9. Maximum frequency: 2Khz
WBT-Q180(Welding Head) Specifications:
1. Net weight: 14KG
2. Dimension(WxHxD): 250mm x 600mm x 250mm
3. Welding force: 3kgf - 45kgf
4. Throat depth: 180mm
5. Available electrode diameter: 6mm/8mm/12mm
6. Driving method: Compressed air
7. Compressed air: 2.5 Bar - 8 Bar
8. Cylinder stroke: 5mm - 45mm
9. Water cooled electrode holder
Applications:
