Wire & Metal Sheet & Enameled Wire Spot Welding Machine

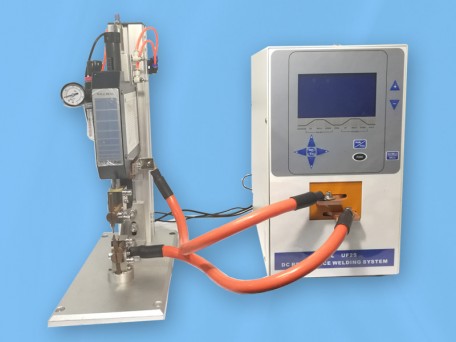

UF25 + WBT-Q01 Precision universal single point welding set
1. UF25 welding power supply
2. One set WBT-Q01 single welding head
3. 2 PCS power cables
4. Weld head switch connection cables
5. 3mm/6mm holders and electrodes
6. one pcs foot pedal
CE CERTIFICATION
Videos:
https://youtu.be/pqd5HKokYKM
https://youtu.be/5qq6DdultOU
https://youtu.be/QZWciVmdSh8
UF25 Features:
High inverter frequency makes the control of welding energy more accurate and rapid.
With double pulse welding function.
Each pulse has the functions of slow rise, slow fall, welding time, welding energy and monitoring data setting.
A variety of welding energy control modes, constant current / constant voltage / constant power, to meet the welding needs of different shapes of materials
Various welding working modes, ordinary spot welding, roll welding / seam welding, continuous welding, double welding head control, PLC control.
The welding results are displayed in text and graphics, which makes the debugging more intuitive and simple.
It has the function of welding quality monitoring and result output, and automatically detects unqualified products.
Serial communication function.
WBT-Q01 Specifications:
1. Net weight:10KG
2. Size: 320mm*180mm*450mm
3. Spring force:0-8kg
4. Thinline:145mm
5. Electrodes:3mm/6mm(diameter)
6. Driving method: Pneumatic
7. Magnetic valve:24V(DC)/220(AC)
When the marterial is high conductive(such as copper,brass) the marterial of electrodes
need to using poor conductive(such as tungsten, molybdenum,tungsten copper)
Welding Samples:
