Welding Heads

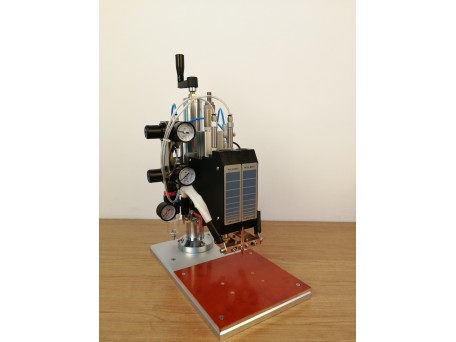

Pneumatic High Speed Precision Parallel Weld Heads,Battery Weld Heads
Features:
1. The gas spring pressurization mechanism ensures pressure stability during high-speed welding
2. Independent adjustment of two electrode pressures
3. The welding force switch is matched with the precision spot welding power supply to ensure the consistency of welding pressure
4. Flexible and lightweight welding force tracking mechanism effectively improves the strength of solder joints
5. The speed of electrode descent and ascent can be adjusted separately, greatly reducing the impact of the electrode on the workpiece
6. The electrode stroke can be adjusted to improve the stability of the welding process pressure
7. Single sided double point welding, specifically designed for battery pack welding
8. Specially designed for battery pack automatic welding machine, can be used in conjunction with ADP3 or UF40C
1. The gas spring pressurization mechanism ensures pressure stability during high-speed welding
2. Independent adjustment of two electrode pressures
3. The welding force switch is matched with the precision spot welding power supply to ensure the consistency of welding pressure
4. Flexible and lightweight welding force tracking mechanism effectively improves the strength of solder joints
5. The speed of electrode descent and ascent can be adjusted separately, greatly reducing the impact of the electrode on the workpiece
6. The electrode stroke can be adjusted to improve the stability of the welding process pressure
7. Single sided double point welding, specifically designed for battery pack welding
8. Specially designed for battery pack automatic welding machine, can be used in conjunction with ADP3 or UF40C
Product Details
Specifications:
1. Weight: 12KG
2. Dimension (mm): 340 * 200 * 475
3. Welding force: 0~10KG (gas spring pressurization mechanism)
4. Maximum electrode stroke: 28mm
5. Throat depth: 160mm
6. Electrode driving method: Pneumatic
7. Two electrode positions adjustable: 0~30mm
8. Electromagnetic valve: 24VDC or 220VAC
1. Weight: 12KG
2. Dimension (mm): 340 * 200 * 475
3. Welding force: 0~10KG (gas spring pressurization mechanism)
4. Maximum electrode stroke: 28mm
5. Throat depth: 160mm
6. Electrode driving method: Pneumatic
7. Two electrode positions adjustable: 0~30mm
8. Electromagnetic valve: 24VDC or 220VAC
