18650/26650/21700 Battery Pack Spot Welding Equipment

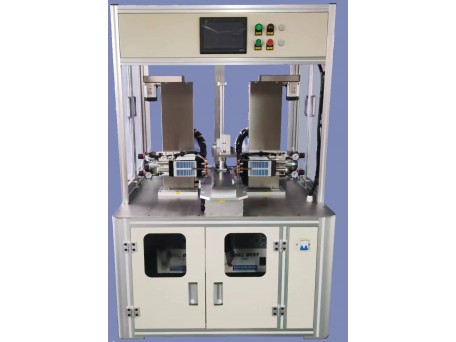

PBW2000B power battery pack double-sided automatic welding machine
Features:
1. Suitable for welding all power battery packs
2. All three axes are driven by servo motors
3. Two sets of WBT-Q03Q dual point pneumatic high-speed precision welding heads
4. Outstand electrode follow-up properties
5. Equiped with ADP3 energy storage welding power supply or UF40 high-frequency DC inverter power supply
6. Welding both sides of the battery pack simultaneously to improve production efficiency
7. Customizable according to the product
1. Suitable for welding all power battery packs
2. All three axes are driven by servo motors
3. Two sets of WBT-Q03Q dual point pneumatic high-speed precision welding heads
4. Outstand electrode follow-up properties
5. Equiped with ADP3 energy storage welding power supply or UF40 high-frequency DC inverter power supply
6. Welding both sides of the battery pack simultaneously to improve production efficiency
7. Customizable according to the product
Product Details
Specifications:
1. Size (mm): 1000 (W) x 800 (D) x 1750 (H)
2. Maximum solder thickness: 0.35mm
3. Maximum X-axis travel: 420mm
4. Maximum Y-axis travel: 320mm
5. Power supply 1 (equipped with two ADP3): single-phase, 220VAC/10A, 50Hz/60Hz
6. Power supply 2 (equipped with two UF40): 3-phase, 380VAC/10A, 50Hz/60Hz
7. Weight: 280KG
8. Welding head configuration: 2 sets, WBT-Q03Q
9. Drive motor: 3 sets, 400W servo motor
1. Size (mm): 1000 (W) x 800 (D) x 1750 (H)
2. Maximum solder thickness: 0.35mm
3. Maximum X-axis travel: 420mm
4. Maximum Y-axis travel: 320mm
5. Power supply 1 (equipped with two ADP3): single-phase, 220VAC/10A, 50Hz/60Hz
6. Power supply 2 (equipped with two UF40): 3-phase, 380VAC/10A, 50Hz/60Hz
7. Weight: 280KG
8. Welding head configuration: 2 sets, WBT-Q03Q
9. Drive motor: 3 sets, 400W servo motor
