Welding Power Supply

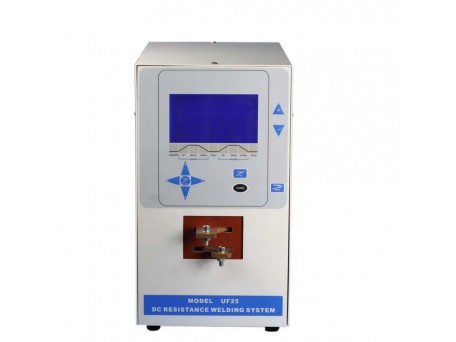

UF 25 High Frequency Inverter DC Welding Power Supply
UF25 Micro precision weld power suorce
1.Net weight:15KG
2.Dimension(mm): 200.2(W) * 360.5(H) * 330.5(D)
3.LCD dispaly
4.Maximum welding current: 2400A
5.Wire welding diameter 0.02-0.3mm
6.Sheet thick from 0.1-0.5mm
7.Cooling model:air
8.Standby power comsumption: 30W
9.Power supply: single phase, 205~235VAC/25A
CERTIFIED TO CE AND ROHS STANDARDS
Weld video
https://youtu.be/pqd5HKokYKM
https://youtu.be/5qq6DdultOU
https://youtu.be/QZWciVmdSh8ss
https://www.ixigua.com/7130952336200957965?logTag=a3c845dec91b6a355ac6a
UF25 is a dual pulse high frequency DC inverter welding power supply with excellent welding ability.When welding the
battery connector, it has the characteristics of short welding time (millisecond level), low calorific value, little damage to
the battery, good appearance of the solder joint,high welding tensile strength, strong welding stability,high control accuracy,
and low welding defect rate.
Features:
1. The inverter frequency of up to 5KHz makes welding energy control more accurate and fast.
2. With double pulse welding function.Double pulse welding, each pulse can be set with slow rise, slow fall, welding time,
welding energy, energy control method, and monitoring comparison data.
3. Multiple welding energy control methods, constant current/constant voltage/constant power.
4. Multiple working modes, BASIC, ROLLSPOT, LINK, PLC-NEW, PLC-CNT.
5. The welding result data can be displayed in text and graphics.
6. The welding process monitoring and evaluation function facilitates welding quality management.
7. The serial communication function can transmit the welding result data of each time to the computer.
8. The remote control function makes it easy to embed UF25 into automatic welding machines.
