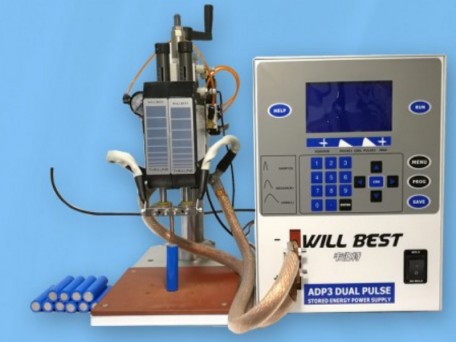

18650/26650/21700 Battery Pack Spot Welding Equipment
ADP3 Precision Energy Storage Welding Power Supply (300 joules)
1. ADP3 dual pulse energy storage welding power supply
2. WBT-Q03 Pneumatic Precision Double Point Welding Head
3. Weld two wires together
4. One pair of 3mm or 6mm diameter welding pins
5. One foot switch
Videos:
https://www.youtube.com/shorts/GVKSmD7Z20g
https://www.youtube.com/watch?v=3e36rVThd1Y
https://www.youtube.com/watch?v=BWhtny0uIus
https://www.youtube.com/watch?v=Z2lwAMAfnkc
https://www.youtube.com/watch?v=aLSLVsIToqw
https://www.youtube.com/watch?v=fwKXNGKPLBc
https://www.youtube.com/watch?v=Kmhfyqw5syM
Specifications:
1. Net weight (kg): 37.52. Size (mm): 500 * 250 * 346
3. LCD display screen
4. Dual pulse output
5. Maximum output energy of 300 joules
6. 208VAC-230VAC,50/60Hz
Features:
1. High precision control of welding energy to improve welding consistency
2. Can store 10 sets of welding programs
3. Three levels of welding current waveform settings
4. Welding current polarity switching
5. Welding current monitoring and waveform display function
6. Multiple standalone working modes
7. Multiple remote control signals for easy integration into automatic welding systems
8. Welding result datas can be sent to computer throught a serial port
WBT-Q03 Precision Double Point Welding Machine Head
Specifications:
1. Net weight (kg): 11
2. Size (mm): 340 * 200 * 475
3. Welding pressure (kg): 0~4 or 0~8
4. Auxiliary stroke (mm): 120
5. Parallel electrode mechanism with adjustable electrode stroke
6. Welding needle diameter (mm): 3/6
7. Drive mode: Pneumatic
8. Auxiliary stroke length: 250mm
