Welding Power Supply

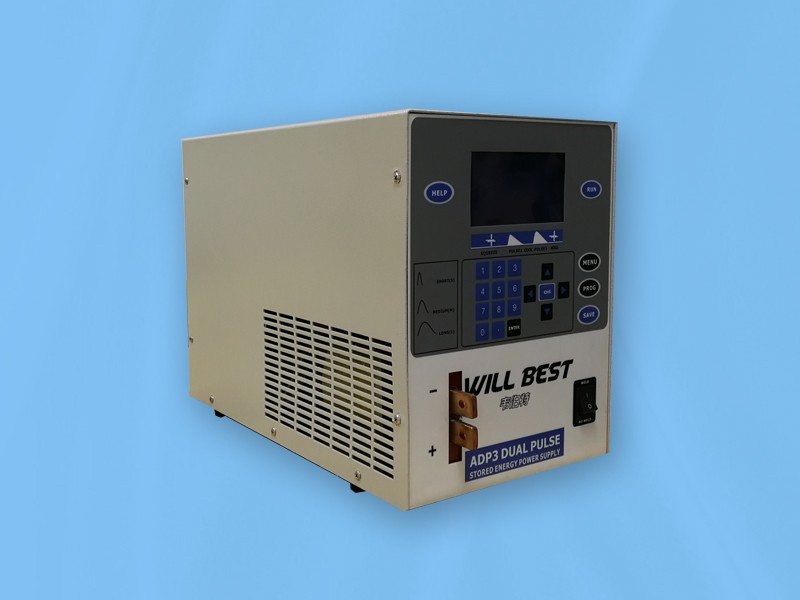

ADP3 Dual Pulse Capacitive Energy Storage Welding Power Supply
ADP3 is a dual pulse capacitive energy storage welding power with 300watts/second (Joule). Can effectively solve most precision metal parts of the resistance welding problems and can set and record 10 groups welding procedures with its unique dual-pulse welding. And has a special energy locking function which ensuring the power supply fluctuationswill not lead to the decline in the quality of welding.
CE Certification
Features:
1.High precision control of welding energy to improve the quality and consistency of welding points.
2.Compatible with mechanical and pneumatic welding heads.
3.Dual pulse reduces welding spatter and effectively improves welding quality.
4.Three levels of welding current waveform settings.
5.Welding current polarity switching.
6.Welding current monitoring and waveform display function.
7.Multiple remote control signals for easy integration into automatic welding systems.
8.Multiple standalone working modes.
9.Serial communication can transmit each welding parameter to the computer.
10.Weak welding prevention function, effectively reducing welding waste.
11.The foot switch terminates the welding function and improves the reliability of welding.
Specifications:
1. Net Weight : 37.5KG
2. Dimension : 250mm(W) * 346mm(H) * 500mm(D)
3. LCD display
4. Maximum Welding Energy : 300 Watts/Second(Joule)
5. Power Supply : 205VAC - 235VAC, 50/60Hz
6. Can using air driving or foot driving weld heads
Application Videos:
Install video, Https://youtu.be/ndJUPg3eALM
Setting video, Https://youtu.be/3e36rVThd1Y
Welding video, Https://youtu.be/ACkgmuec4Ns
Welding samples:
