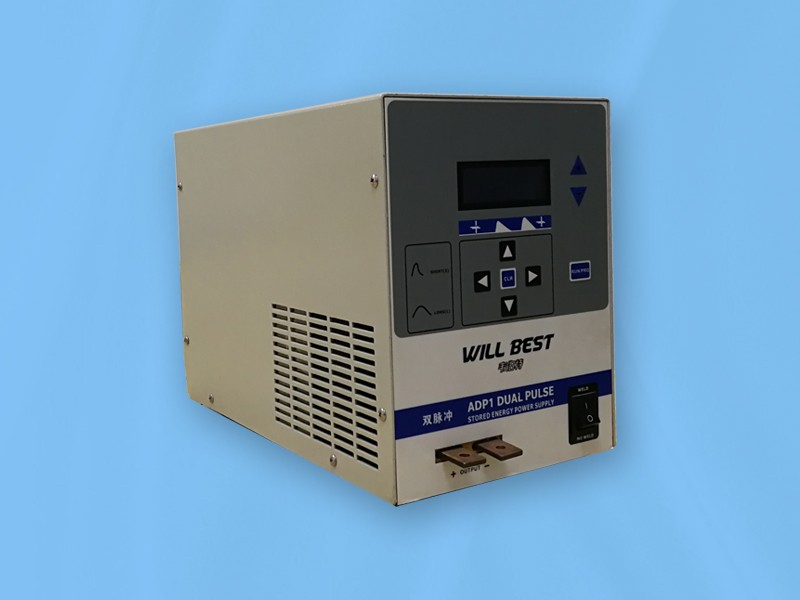

ADP1 Dual Pulse Capacitive Energy Storage Wedling Power Supply
ADP1 weld power supply information
1.Net weight:28KG
2.Size:450mm*210mm*287mm
3.LCD dispaly
4.dual pluse welding power supply
5.150watts/second (Joule) capacitor discharge
6.110VAC,208VAC-230VAC,50/60Hz
7.Welding thickness 0.1-0.2mm
8.Can using air driving or foot driving weld heads
CERTIFIED TO CE AND ROHS STANDARDS
Install video,https://youtu.be/NloH3lkRVQU
Setting video,https://youtu.be/duyKUPDszWU
ADP1 is a dual pulse capacitive energy storage spot welding power supply.
Dual pulse welding can improve welding quality and reduce welding spatter. During welding, the first
pulse is used to remove the indicated coating or oxide of the workpiece, therefore workpiece is in good
contact with the welding electrode. The second pulse is used to weld the workpiece.
Detailed list of features
1. High precision control of welding energy to improve the quality of welding point.
2. Compatible with mechanical and pneumatic welding heads.
3. Double pulse welding can reduce welding spatter and improve welding quality.
4. Welding current monitoring function.
5. Welding quality assessment and output function.
6. Multiple welding control handshake signals, easy to embed into automatic welding systems.
7. Serial communication can transmit the welding result data of each time to the computer.
8. Up to 8 sets of welding parameters can be set for multiple settings.
ADP1 physical characteristics
SIZE:287*210*450MM Weight:18kg
