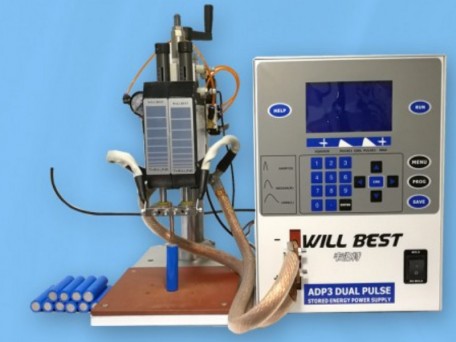

18650/26650/21700 Battery Pack Spot Welding Equipment
300 Joule energy storage power battery pack welding machine
The battery pack welding equipment includes:
1. ADP3 dual pulse energy storage welding power supply
2. WBT-Q03 Pneumatic Precision Double Point Welding Head
3. Weld two wires together
4. One pair of 3mm or 6mm diameter welding pins
5. One foot switch
1. ADP3 dual pulse energy storage welding power supply
2. WBT-Q03 Pneumatic Precision Double Point Welding Head
3. Weld two wires together
4. One pair of 3mm or 6mm diameter welding pins
5. One foot switch
Product Details
ADP3 dual pulse energy storage welding
Specifications:
1. Net weight (kg): 37.5
2. Size (mm): 500 * 250 * 346
3. LCD display screen
4. Dual pulse output
5. Maximum output energy of 300 joules
6. 208VAC-230VAC,50/60Hz
Features:
1. High precision control of welding energy to improve welding consistency
2. Can store 10 sets of welding programs
3. Three levels of welding current waveform settings
4. Welding current polarity switching
5. Welding current monitoring and waveform display function
6. Multiple standalone working modes
7. Multiple remote control signals for easy integration into automatic welding systems
Specifications:
1. Net weight (kg): 37.5
2. Size (mm): 500 * 250 * 346
3. LCD display screen
4. Dual pulse output
5. Maximum output energy of 300 joules
6. 208VAC-230VAC,50/60Hz
Features:
1. High precision control of welding energy to improve welding consistency
2. Can store 10 sets of welding programs
3. Three levels of welding current waveform settings
4. Welding current polarity switching
5. Welding current monitoring and waveform display function
6. Multiple standalone working modes
7. Multiple remote control signals for easy integration into automatic welding systems
8. Welding result datas can be sent to computer throught a serial port
WBT-Q03 Precision Double Point Welding Machine Head
Specifications:
1. Net weight (kg): 11
2. Size (mm): 340 * 200 * 475
3. Welding pressure (kg): 0~4 or 0~8
4. Auxiliary stroke (mm): 120
5. Parallel electrode mechanism with adjustable electrode stroke
6. Welding needle diameter (mm): 3/6
7. Drive mode: Pneumatic
8. Auxiliary stroke length: 250mm
