18650/26650/21700 Battery Pack Spot Welding Equipment
150 joule energy storage battery welding machine
The battery pack welding equipment includes the following:
1. ADP1 dual pulse energy storage precision welding power supply2. WBT-Q03 Pneumatic Double Point Precision Welding Machine
3. Welding two cables
4. Equipped with 1 pair of 3mm or 6mm diameter reinforced aluminum copper welding needles
5. Equipped with one foot switch
Product Details

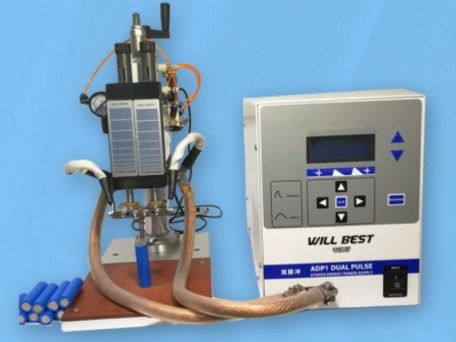

ADP1 dual pulse energy storage welding power supply
1. Net weight: 28KG
2. Size (mm): 450 * 210 * 287
3. LCD display
4. Dual pulse output, maximum welding energy of 150 joules
5. 208VAC-230VAC,50/60Hz
Features:
1. High precision control of welding energy to improve the quality of solder joints2. Welding current monitoring function
3. Welding quality assessment and output function
4. Multiple welding control handshake signals, easy to embed into automatic welding systems
5. Serial communication can transmit the welding result data of each time to the computer
6. Up to 8 sets of welding parameters can be set for multiple settings
WBT-Q03 Pneumatic Double Point Precision Welding Head
Specifications:
1. Net weight: 11KG
2. Size (mm): 340 * 200 * 475
3. Welding pressure range : 0~4 KGF or 0~8KGF
4. Throat depth : 120mm
5. Parallel electrode structure, adjustable electrode stroke
6. Electrode diameter: 3mm/6mm
7. Drive mode: Pneumatic
8. Auxiliary stroke length? 250mm
